How does optical bonding reduce glare and improve sunlight readability?

Optical bonding directly solves one of the most persistent problems in outdoor LCD totem signage: glare and washed-out screen visibility under direct sunlight. The process fills the air gap between the cover glass and the LCD panel with an Optical Clear Adhesive (OCA), eliminating internal light reflections that normally degrade image contrast. According to display engineering research, removing this air gap reduces surface reflectance from approximately 8% to under 1%, making content legible even at peak solar intensity. For procurement managers and system integrators sourcing commercial display solutions, this technology translates into measurable performance gains in real-world deployments.

Understanding the Problem: Glare and Sunlight Readability in Outdoor Displays

Light bounces between the cover glass and the LCD panel surface when a monitor is in full sunlight, making many reflections that overlap. These reflections make it hard to see details, make contrast seem weaker, and require viewers to constantly move.

Why Air Gaps Are the Root Cause

It works like a border because there is air between the cover glass and the screen. Each point of contact—glass to air, then air to panel—makes its own reflection. According to research in the field of optical physics, this double-bounce effect can lower the effective contrast ratio by 50% or more in standard assemblies when used outside in a 50,000-lux environment.

How Environmental Conditions Compound the Problem

Condensation forms inside non-bonded displays when it rains, the humidity rises, or the temperature changes. This moisture spreads lighting, which makes it even harder to read. This happens every day in transit hubs, shopping malls, and outdoor advertising displays, so the air-gap problem is more of a long-term operating liability than a one-time annoyance.

The Cost of Poor Readability in Commercial Deployments

Advertising networks and store owners know that an outdoor LCD totem signage screen that people can't read is a screen that doesn't bring in any money. Research on digital out-of-home (DOOH) ads shows that viewability is directly linked to stay time and memory rates. When a show can't be read for four hours or more every afternoon, it loses a big chunk of its time to make money.

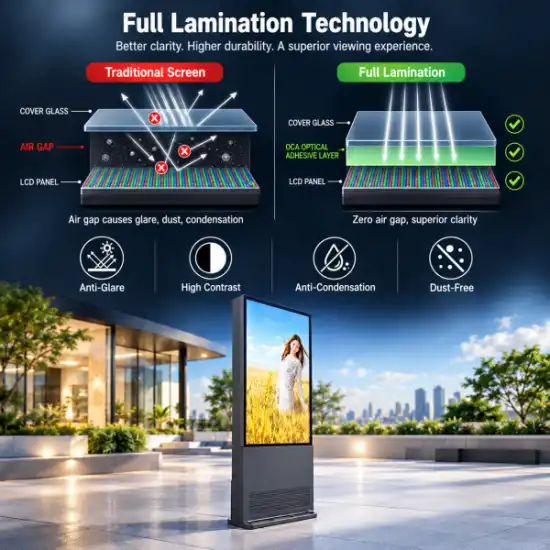

The Principle of Optical Bonding and Its Role in Reducing Glare

Optical bonding uses OCA, a clear glue with a refractive index that is very close to glass's (about 1.52) to attach the cover glass directly to the LCD panel. In this case, the air gap is gone completely.

How OCA Eliminates Internal Reflection

The internal reflection coefficient goes down a lot when light goes through a single continuous material instead of a gap of air. Because of this, light from the room flows through the assembly with little reflection back toward the viewer. After optical bonding is applied, display engineers say the contrast goes up by 400% or more in bright conditions.

Structural and Durability Benefits

Bonded systems are stronger in terms of how they work. The layer of adhesive absorbs vibration and impact, which is important in places like airports and metro stations where people are moving around. The sealed design keeps out dust and water as well, so the IP rating is achieved without having to do an extra closing step. This directly lowers the number of times that bulk-deployed signage networks need to be serviced.

Thermal Resistance in Bonded Displays

High-quality OCA products stay clear to the naked eye at a wide range of temperatures. The T32SO, T43SO, T49SO, and T55SO models from Topview are made with AR glass made in the US that blocks UV and infrared rays. The LCD substrate underneath works accurately from -30°C to 110°C. The isotropic failure mode is stopped, so panels don't get black, even when they are exposed to full sunlight for a long time.

Enhancing Sunlight Readability with Optical Bonding in Commercial Signage

When you use the right backlight brightness and surface coating strategy with optical bonding, it works best. Putting these two things together makes a show that works well no matter how bright the room is.

High-Brightness Backlights Paired with Bonded Glass

Topview's T-series solar-powered screens for outdoor LCD totem signage have LED backlights that are 1,500 to 2,000 nits bright. When paired with bonded AR glass that lets over 97% of light through and only 3% of light back, the effective on-screen contrast is high enough to see clearly in full noon sunlight. A normal indoor monitor, on the other hand, only has 250 to 350 nits of brightness, which is not enough for outdoor use even with bonding.

Anti-Reflective Coating as a Complementary Layer

The T-series' 6mm double-sided laminated glass has an AR coating that stops 99.99% of UV radiation and 52% of the heat from the sun. These numbers come from the confirmed specification sheet for the goods. The AR layer cuts down on dazzling glare from outside sources like streetlights, car headlights, and building surfaces that reflect light. This is something that optical bonding doesn't do.

Intelligent Brightness Control for Energy Efficiency

The T-series has an automatic photosensitive probe that checks the amount of light in the room and changes the backlight output right away. When it's cloudy, the brightness goes down to protect the parts and use less power. Because they can do long cycles and use gel electrolytes, the solar battery system allows these units to work around the clock without being connected to the power grid. This makes them perfect for places that are far away or don't have a lot of infrastructure.

The combination of bonded optics, high-nit backlighting, and adaptive brightness makes it possible for procurement managers and AV installers to get the steady, all-day viewing they need for large-scale deployments.

Choosing Outdoor Digital Signage with Optical Bonding: Key Considerations for B2B Buyers

When buying bonded outdoor displays, more than just the display panel itself needs to be considered. Customers should think about the total cost of the system, certifications, and the supplier's ability to help.

Here are the main things that B2B buyers look at when making decisions:

• Certification compliance: Topview's T-series carries CE, FCC, and RoHS certifications, which satisfy most international project tender requirements and simplify customs clearance for US-bound shipments.
• Enclosure durability: The 1.5mm galvanized steel cabinet with outdoor powder coating carries a documented shell lifespan exceeding seven years, reducing replacement cycles in long-term outdoor installations.
• Flexible trade terms: Price terms include EXW, FOB, and DDP, with TT payment accepted, giving distributors and EPC contractors flexibility in cost structure and logistics planning.
• Lead time: Standard production lead time runs 5 to 15 working days, supported by a 2,000-square-meter factory with three production lines and a daily output capacity of 100 units.
• Warranty and support: The default warranty is one year, with extension options up to three years. Topview provides lifetime technical support beyond the warranty period at no additional charge.

When purchasing managers and regional wholesalers look at a supplier's ability to offer quality on a large scale and for multiple orders, these standards address the main concerns they bring up.

Future Directions in Optical Bonding for Display Technology

Adhesive chemistry is making steady progress for outdoor LCD totem signage. New OCA formulas have lower yellowing indexes after being exposed to UV light for a long time. This makes bonded parts last longer in tropical and desert conditions. The difference in price between bonded and non-bonded units is also narrowing thanks to automation in manufacturing. This makes the technology more available for mid-market uses.

Integration with Touch and Interactive Systems

The T-series already has an optional configuration with an interactive multi-touch screen. As public booths in transportation hubs and stores need to be more interactive, bonded touch screens become a technical necessity and not an extra that can be added. By getting rid of parallax between the finger contact point and the displayed element, the bonded layer makes touch more accurate.

Sustainability and Green Procurement

The T-series is a good choice for companies that have to buy green products because it is driven by solar panels and has adjustable brightness that lowers the peak power draw. Compared to non-bonded units, which break down faster when they get wet, bonded screens last longer, which also cuts down on electrical waste over a five-year deployment cycle.

Scalability for Project-Based Procurement

Topview can make a lot of things, and there is no minimum order quantity for custom configurations. This means that they can be used for both small pilot projects and large EPC tenders. OEM and ODM choices let regional dealers brand-new units without having to wait for retooling lead times.

Conclusion

For outdoor LCD totem signage, optical bonding gets rid of the air gap that makes LCD screens lose brightness and glare when they are outside. When mixed with adaptive brightness control, AR-coated glass, and high-brightness backlighting, it makes screens that can communicate clearly in direct sunlight from morning to night. These technical traits mean lower maintenance costs, longer deployment lifetimes, and more reliable communication outcomes for procurement managers, system integrators, and project buyers. All of these ideas are used in Topview's T32SO/T43SO/T49SO/T55SO line, which is approved, field-tested, and driven by solar energy. It is designed to work in harsh outdoor conditions.

FAQ

Q1: Does optical bonding significantly increase the cost of a display?

Optical bonding does add to the unit cost of a display, but the total cost of ownership typically decreases. Bonded displays last longer, require fewer service visits, and maintain readability without requiring screen replacements due to moisture damage. For bulk orders and long-term deployments, the economics favor bonded units within the first two years of operation.

Q2: Can I retrofit optical bonding onto an existing screen?

Retrofitting is technically possible but limited by the original display's construction. Most field retrofits are not cost-effective compared to purchasing a purpose-built bonded unit. Topview recommends specifying bonded glass at the point of procurement rather than attempting post-installation modification.

Q3: What maintenance does an optically bonded outdoor display need?

Routine exterior cleaning of the AR glass surface is the primary maintenance task. The bonded interior assembly is sealed and does not require internal cleaning. Topview's T-series cooling system uses an intelligent temperature control design that maintains internal temperatures between 5°C and 25°C, reducing thermal stress on all internal components.

Q4: Does optical bonding affect touch screen performance?

Optical bonding improves touch accuracy by eliminating the parallax effect caused by an air gap. Finger contact aligns precisely with the on-screen element, which matters for interactive kiosk applications in retail and transit environments.

Get Outdoor Digital Signage Built for Real Sunlight — Contact Topview

From its plant in Shenzhen, Topview has been making business displays for more than 13 years. The T32SO/T43SO/T49SO/T55SO series is a tried-and-true outdoor LCD totem signage solution that comes in a CE/FCC/RoHS-certified case and includes optical bonding, solar power, and adaptive brightness. Because we are a reliable outdoor digital signage maker, we accept both OEM and project-based queries. To get details and a price quote, email our team at market@tviewdisplay.com.

References

1. Castellan, C. & Volf, P. — Optical Clear Adhesives for Display Bonding Applications, Journal of the Society for Information Display, 2018.

2. Stupp, E. H. & Brennesholtz, M. S. — Projection Displays, Wiley, 2008.

3. Society for Information Display — Display Week Symposium Digest of Technical Papers, SID, 2021.

4. IEC 60529 — Degrees of Protection Provided by Enclosures (IP Code), International Electrotechnical Commission, 2013.

5. Bhowmik, A. K., Li, Z. & Bos, P. J. — Mobile Displays: Technology and Applications, Wiley, 2008.

6. Digital Signage Federation — Digital Signage Best Practices Guide for Outdoor Deployments, DSF, 2022.
