Outdoor double-sided digital signage kiosk
2)Full HD resolution 1920*1080, Ultra HD resolution 3840*2160 option 3)Ultra Wide temperature TFT LCD Display -20°C to +70°C (even wider range from -40°C to +90°C) 4) Certification: FCC,ROHS,CE
5)Price Terms︰ Exw,FOB Or DDP
6)Payment Terms︰ TT
7)Packing︰Packaging Details: Wooden case reforced package
8)Lead Time︰ 5-15 workdays 9)Warranty: 1 year as default, 3 years Max available
- Product Description
Outdoor Double-Sided Digital Signage Kiosk
Shenzhen Topview Display's Outdoor double-sided digital signage kiosk conveys enterprise-grade visual communication for requesting outside situations. With over 14 a long time of fabricating skill, our arrangement highlights mechanical LCD boards with brightness coming to 2,500 cd/m², working dependably in extraordinary temperatures from -40°C to +90°C.
The IP65-rated walled in area utilizes 1.2-3.0mm SGCC galvanized steel, coated with AkzoNobel outdoor-grade powder for 5-8 a long time security. Accessible in sizes from 21.5" to 98", each unit bolsters both Full HD (1920×1080) and Ultra HD (3840×2160) resolutions. Our secluded plan guarantees quick support get to, whereas shrewdly warm administration keeps inside temperatures fair 8-10°C over encompassing conditions—even beneath coordinate sunlight.
Why Choose Double-Sided Display Architecture?
Your informing merits most extreme introduction. Conventional single-screen establishments miss half your potential gathering of people strolling from inverse directions.
Our Outdoor double-sided digital signage kiosk copies your impression rates without multiplying your impression. The back-to-back LCD arrangement captures bidirectional person on foot and vehicular activity at the same time. This plan demonstrates fundamental in transportation centers, retail squares, and EV charging stations where perceivability from numerous points drives engagement.
Each side works autonomously through dual-output media players. You can plan distinctive substance for arriving versus withdrawing audiences—welcome messages on one confront, limited time offers on the other. This adaptability changes inactive shows into energetic communication instruments that adjust to watcher context.
Technical Specifications
| Parameter | Specification |
|---|---|
| Available Sizes | 21.5", 32", 43", 49", 55", 65", 75", 86", 98" |
| Resolution | Full HD 1920×1080 / Ultra HD 3840×2160 |
| Brightness | 2,000-2,500 cd/m² |
| Operating Temperature | -40°C to +90°C (ultra-wide range) |
| Protection Rating | IP65 (dust-tight, water-resistant) |
| Front Glass | 5-8mm tempered glass, ≥96% transparency |
| Enclosure Material | 1.2-3.0mm SGCC galvanized steel |
| Coating | AkzoNobel outdoor powder, 5-8 year protection |
| Color Depth | 16.7 million colors |
| Lifespan | 50,000 hours (24/7 continuous operation) |
| Audio Output | Dual-channel stereo, 10W @ 8Ω |
| Certifications | CE, RoHS, FCC, C-TICK, FDA, ISO |
| Warranty | 1 year standard, 3 years maximum |
Engineered for Extreme Environments
Outdoor establishments confront challenges no buyer show can handle. Temperature swings, dampness entrance, clean amassing, and coordinate sun oriented introduction devastate standard screens inside months.
We've coordinates LG, BOE, and AUO ultra-wide temperature LCD boards particularly evaluated for -40°C to +90°C operation. These mechanical components keep up visual clarity when shopper TVs would fall flat totally. The 5-8mm anti-reflective tempered glass conveys 96% light transmittance whereas blocking UV radiation that corrupts shows over time.
Our IP65 walled in area highlights waterproof grooves and specialized ventilation gaps. Medium and high-efficiency clean channels secure inner components from fine particulates and anticipate creepy crawly interruption. The measured entryway plan permits specialists to get to shows, cooling frameworks, and hardware without disassembling the whole structure.
The cleverly coordinate ventilation cooling framework makes isolated wind current ways for front and back boards. Outside discuss enters through sifted vents, circulates over heat-generating components, and debilitates through high-pressure fans. This keeps up inner temperatures fair 8-10°C over ambient—even in leave conditions or tropical humidity.
Advanced Thermal and Electrical Protection
Dual high-brightness panels generate substantial heat. Without proper thermal management, components fail rapidly, causing costly downtime.
Our independently developed temperature control motherboard automatically adjusts fan speed based on real-time internal readings. When temperatures approach critical thresholds, the system activates high-temperature automatic power-off protection. This feature cuts power to LCD panels while keeping fans running at maximum speed until safe temperatures return.
The electrical architecture includes comprehensive safeguards: surge protection, leakage protection, overload protection, overvoltage protection, and thermal cutoffs. These systems meet international safety standards, ensuring reliable operation in unstable power grid conditions common in outdoor installations.
Automatic light sensing adjusts backlight intensity throughout the day. In bright sunlight, brightness increases to 2,500 cd/m² for perfect visibility. At night, the system dims to comfortable levels, reducing light pollution complaints while conserving energy. This adaptive approach extends panel lifespan while maintaining optimal viewing conditions.

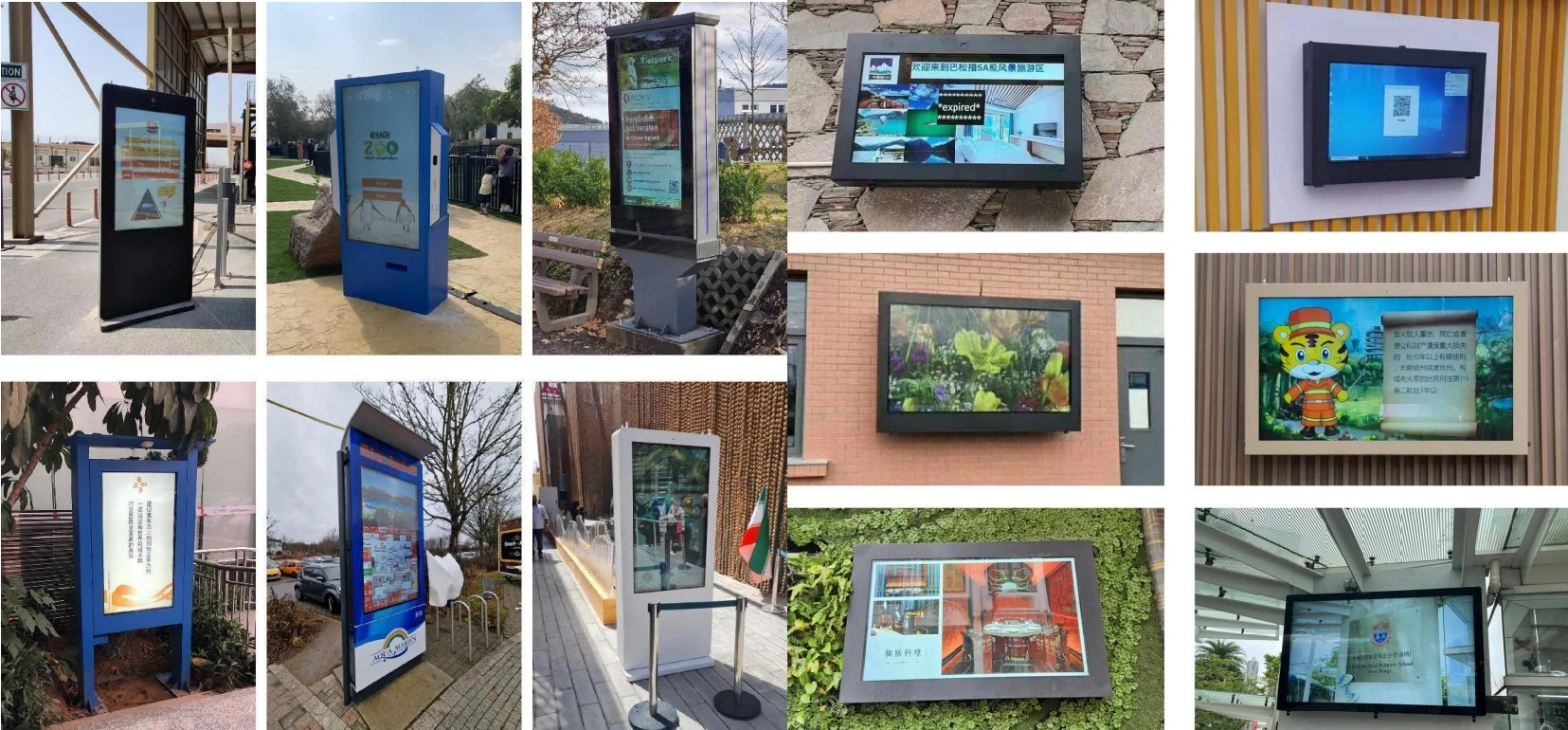

Diverse Application Scenarios
Transportation Hubs: Bus shelters and rail terminals benefit from real-time transit information on one display face while generating advertising revenue on the opposite side. The ruggedized construction withstands vehicle vibration and exhaust exposure.
Retail Environments: Shopping districts use our Outdoor double-sided digital signage kiosk for wayfinding and promotions. The dual-screen format doubles impression rates for foot traffic entering and exiting commercial zones. Touch-enabled options transform directories into interactive experiences.
EV Charging Stations: While drivers charge vehicles, dual screens broadcast high-value advertisements visible to both users and passing traffic. The open parking lot environment demands supreme brightness and contrast—capabilities our panels deliver consistently.
Smart City Networks: Urban planners integrate these kiosks into municipal communication infrastructure. Public service announcements, emergency alerts, event calendars, and local business promotions reach citizens from all directions.
Customization and Integration Capabilities
Every installation environment presents unique requirements. Our 14-year engineering team specializes in tailored solutions that address specific industry needs.
We offer extensive customization in appearance, functionality, and integrated modules. Add QR code scanners for contactless engagement, thermal printers for ticketing, cameras for security monitoring, or card readers for payment processing. Healthcare facilities integrate A4 report printers; border control adds passport recognition; retail chains incorporate receipt printers.
You select powder coating colors to match brand guidelines. Custom sizes accommodate unusual spatial constraints. Software integration connects your Content Management System to our media players for centralized control across multiple locations.
Standard units ship within 5-7 business days for orders of 100-200 units. Custom configurations deliver in 15-20 business days. We provide design drawings and sample arrangements the same day you confirm your order.
Frequently Asked Questions
Q: How does the kiosk prevent overheating with two screens?
A: We employ airflow separation technology. Filtered cool air circulates independently across each panel's heatsinks before exhausting through centrifugal fans. Temperature control motherboards adjust fan speeds dynamically based on internal readings.
Q: Will displays fail in direct sunlight?
A: No. We use High Tni (110°C) industrial LCD panels specifically designed for solar exposure. Consumer TV panels fail at 68-75°C, but our components maintain performance even when surface temperatures exceed 90°C.
Q: Can each side display different content?
A: Yes. Dual-output media players allow independent content scheduling through your CMS. Display arrival messages on one face while showing departure information on the other—perfect for transportation hubs and retail zones.
Q: Is the glass vandal-resistant?
A: The 5-8mm tempered glass meets IK10 impact resistance standards. Even under extreme force, the laminated construction holds shattered pieces together, preventing injury in public spaces.
Q: What maintenance does the kiosk require?
A: Dust filters need periodic cleaning—easily accessed through the modular door design. We provide lifetime online technical support, video repair guidance, and free spare parts for warranty-covered components.
Q: How is brightness managed at night?
A: Integrated ambient light sensors automatically reduce backlight intensity from 2,500 cd/m² during daylight to comfortable levels after dark. This prevents light pollution complaints while extending panel lifespan.
Get Your Custom Quote Today
Our engineering team stands ready to design the perfect Outdoor double-sided digital signage kiosk for your specific application.
Contact us at market@tviewdisplay.com.
