Bus Station Light Pole Mounted Digital Signage Solutions

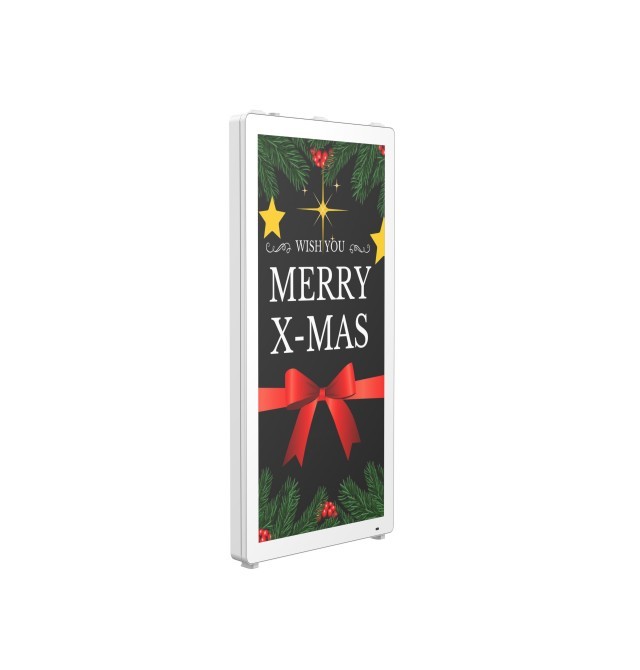

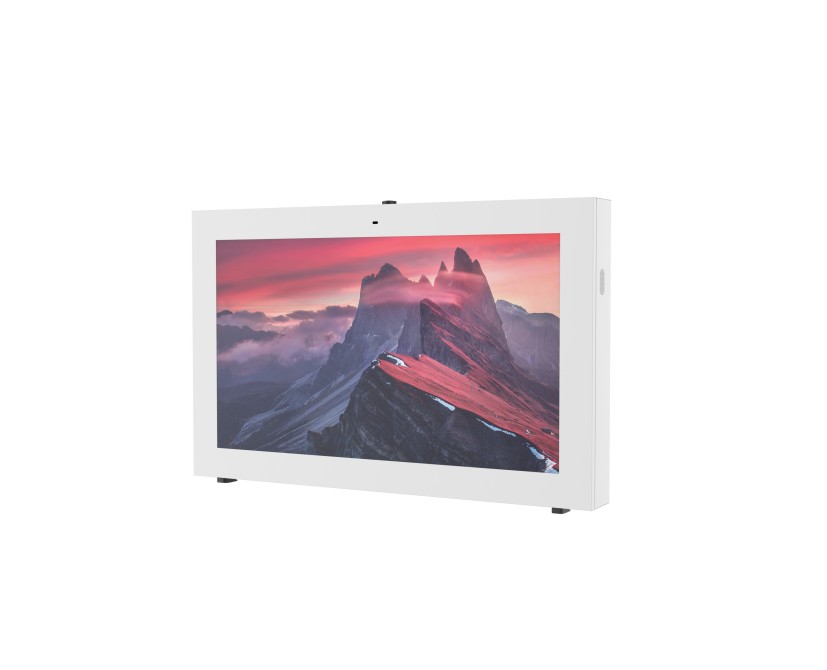

Shenzhen Topview Display presents its Bus station light Pole Mounted digital signage solutions, built particularly for requesting open air travel situations. Our T-Series shows convey remarkable unwavering quality with brightness levels coming to 2000-2500 cd/m², guaranteeing crystal-clear perceivability indeed beneath coordinate daylight. With IP65-rated weatherproof security and measured plan engineering, these shows bolster 24/7 persistent operation with a demonstrated life expectancy of 50,000 hours. Accessible in seven sizes from 32 to 86 inches, each unit highlights programmed brightness alteration, dual-sided show choices, and works immaculately in temperatures extending from -20°C to +50°C. Sponsored by 14+ a long time of fabricating ability and comprehensive certifications counting CE, RoHS, and FCC, our arrangements change standard transport stops into shrewdly communication hubs.

Why Choose Our Pole-Mounted Transit Display Solutions?

Your travelers merit solid, clear data in any case of climate conditions or time of day. Our shows unravel the basic challenge of open air perceivability through high-brightness LG, BOE, and AUO boards that combat daylight washout.

The brilliantly surrounding light detecting framework naturally alters screen brightness in real-time. Amid crest daylight hours, brightness maximizes for ideal meaningfulness. As evening approaches, the framework darken fittingly to avoid light contamination whereas preserving energy.

Our IP65 assurance standard implies total defense against rain, snow, clean, and mugginess. Specialized waterproof grooves and fixed discuss circulation frameworks keep inner components secure whereas keeping up ideal working temperatures through cleverly ventilation.

Technical Specifications

Advanced Thermal Management System

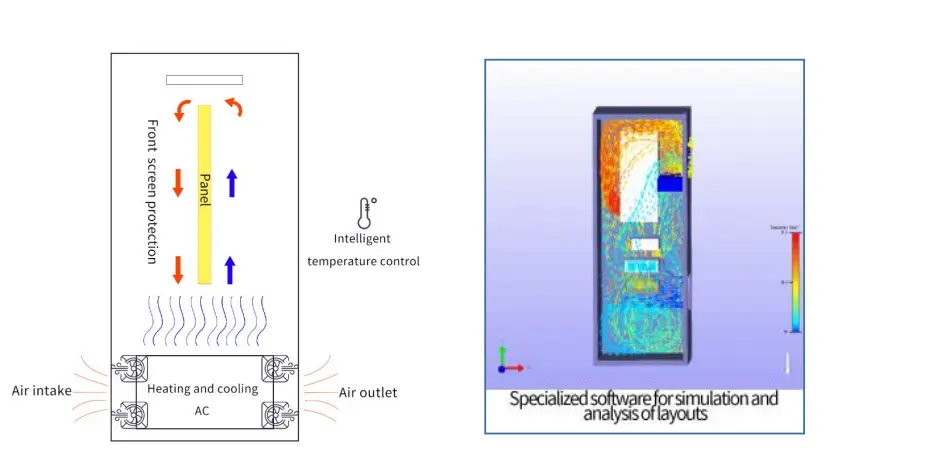

Transit situations request shows that won't fall flat amid summer heatwaves or winter solidifies. Our coordinates shrewdly ventilation framework makes two partitioned discuss circulation channels—one in front of the screen, one behind it.

External discuss passes through high-efficiency tidy channels some time recently entering the unit. This dual-channel plan keeps up inside temperatures 8-10°C lower than outside encompassing conditions. An autonomously created temperature control motherboard screens conditions ceaselessly and alters fan speeds automatically.

When inner temperatures rise unusually, the programmed high-temperature security framework actuates. Control to the show cuts off whereas fans proceed running at full speed. This brilliantly defend ensures your speculation amid extraordinary climate events.

Modular Design for Easy Maintenance

Your maintenance team will appreciate the thoughtful engineering behind every Bus station light Pole Mounted digital signage solutions unit. The entire system follows modular design principles for sustainable, maintainable operation.

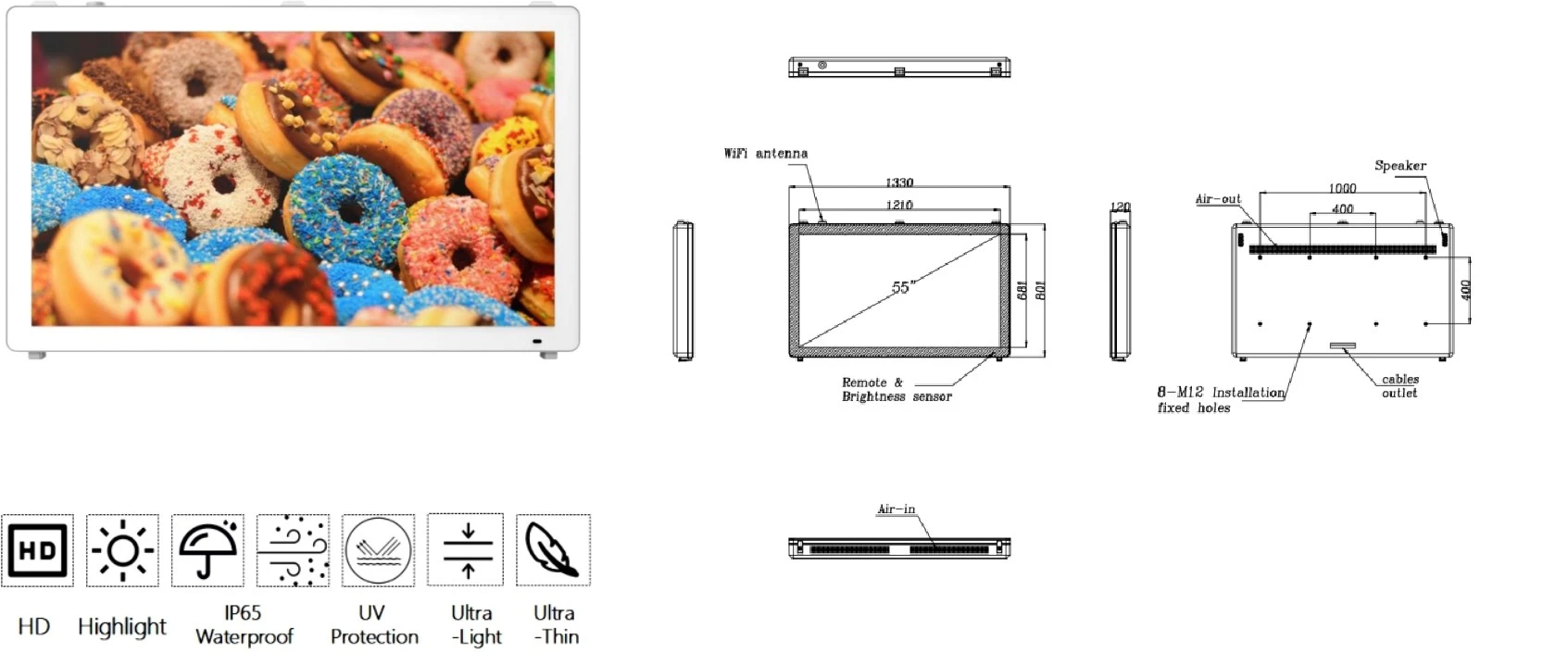

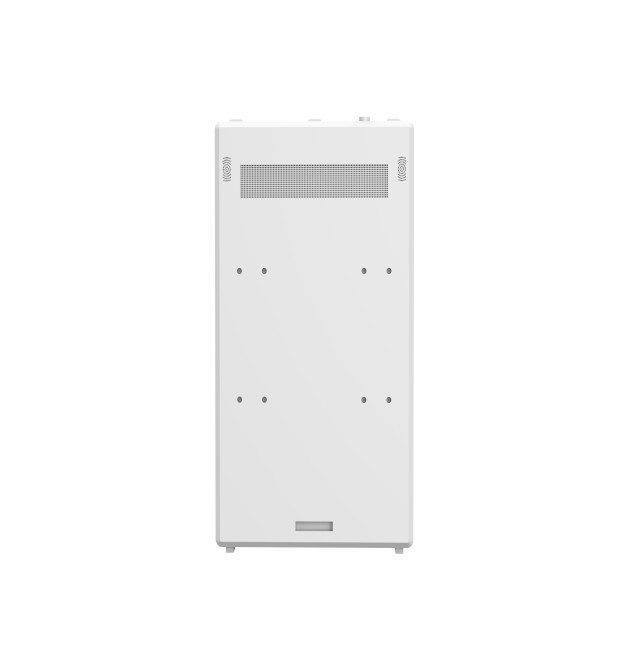

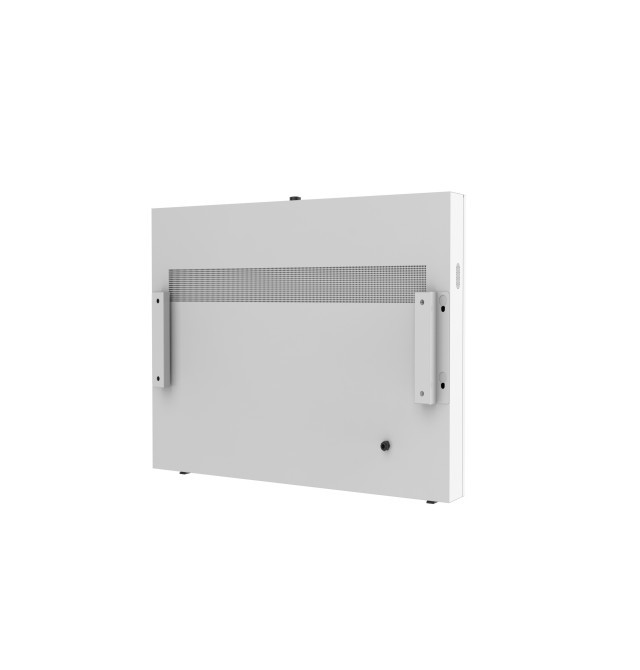

Simply open the front or rear access door to reach display screens, heat dissipation components, and electronic modules. No specialized tools or complicated disassembly procedures are required. Bottom-mounted fixing holes accommodate expansion bolts or pre-embedded threaded rods for secure pole installation.

Dust filters feature simplified removal and installation, making routine cleaning quick and straightforward. This design philosophy minimizes downtime and reduces long-term maintenance costs significantly.

Comprehensive Protection Systems

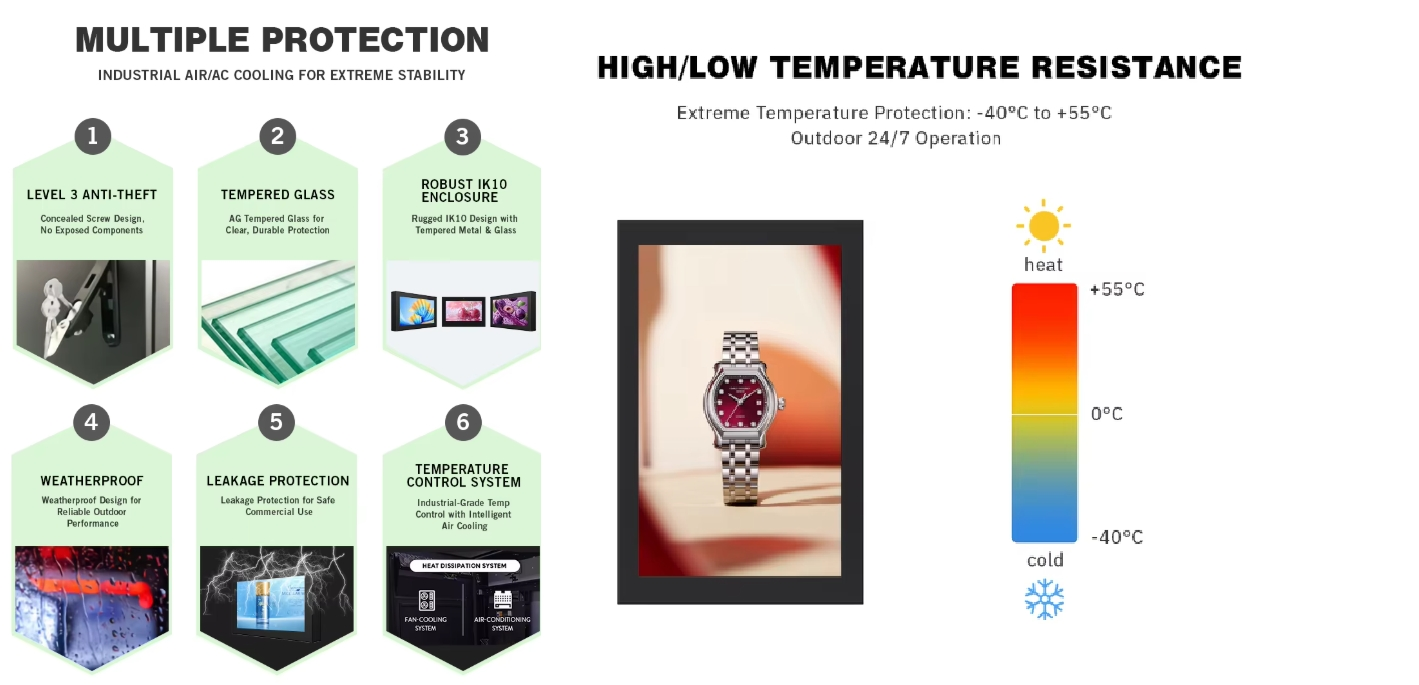

Bus stops present unique challenges—from electrical surges during storms to curious passengers touching screens. Our displays include multiple layers of protection engineered for public transit environments.

Electrical Protection Suite:

• Surge protection guards against lightning strikes
• Leakage protection ensures passenger safety
• Overload and overvoltage protection preserve components
• High-temperature protection prevents thermal damage

Physical Protection:

The 5-8mm explosion-proof tempered glass provides IK-rated impact resistance. The galvanized steel housing withstands vandalism attempts while the AkzoNobel powder coating resists corrosion from road salt and pollution.

UV Protection and Energy Efficiency:

Built-in UV protection prevents panel degradation over years of sunlight exposure. Heat insulation technology reduces cooling requirements. The automatic light-sensing system delivers green energy savings without compromising visibility.

Customization and Fast Deployment

Every transit network has unique requirements. We offer extensive customization in appearance, functionality, and integration options. Our Bus station light Pole Mounted digital signage solutions can incorporate QR code scanners, thermal printers, cameras, and various reader modules.

Delivery Timeline:

• Standard configurations: 5-7 business days for 100-200 units
• Custom solutions: 15-20 business days
• Design drawings and samples: Same-day upon order confirmation

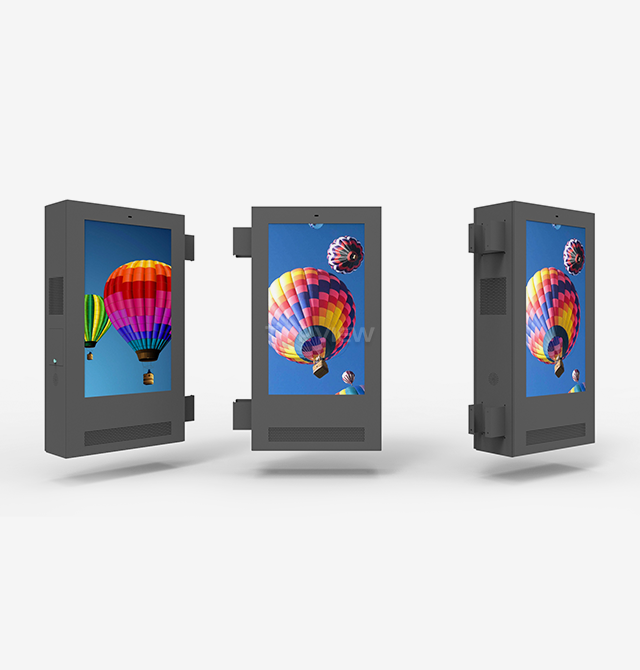

Our engineering team works directly with you to create solutions matching your specific deployment scenarios. Whether you need single-sided displays for wall-mounted applications or dual-sided configurations for center-mounted poles, we deliver precisely what your project requires.

Frequently Asked Questions

Q1: Will these displays remain readable during intense summer sunlight?

A1: Absolutely. Our panels deliver 2000-2500 cd/m² brightness with anti-reflective tempered glass achieving ≥96% light transmittance. The high-Tni LCD technology prevents blackening even when surface temperatures exceed 60°C. Passengers can read schedules clearly even at noon on the brightest days.

Q2: How does the display handle extreme cold weather startup?

A2: Our systems are engineered for -20°C to +50°C operation. Cold-start functionality ensures proper boot sequences in freezing conditions. The intelligent thermal management system activates heating elements as needed to bring components to optimal operating temperature quickly.

Q3: What maintenance is required for the dust filtration system?

A3: We recommend inspecting and cleaning dust filters every 3-6 months, depending on your local air quality and pollution levels. The simplified disassembly design allows maintenance staff to remove, clean, and reinstall filters in minutes without specialized tools.

Q4: Can the display withstand accidental impacts or vandalism attempts?

A4: Yes. The front protective glass is 5-8mm explosion-proof tempered glass designed to withstand significant impacts. The galvanized steel housing provides structural integrity, and all access points feature secure locking mechanisms to prevent unauthorized entry.

Q5: How does automatic brightness adjustment work?

A5: An integrated ambient light sensor continuously monitors environmental lighting conditions. The system adjusts backlight intensity in real-time—maximizing brightness during daylight for readability and dimming at night to prevent light pollution and extend component lifespan.

Q6: What happens if moisture enters the enclosure?

A6: Our IP65 rating means this scenario is extremely unlikely. The housing features specialized waterproof grooves, sealed air inlets/outlets, and waterproof cable glands. Even in prolonged rain or snow, internal components remain completely dry and operational.

Q7: Is technical support available after installation?

A7: Yes. Topview Display provides lifetime online technical support. Our warranty covers manufacturing defects and includes free spare parts with video guidance for repairs. Our global support team ensures your displays maintain optimal performance throughout their operational life.

Contact Us for Your Transit Display Solution

Ready to upgrade your bus station infrastructure with reliable Bus station light Pole Mounted digital signage solutions?

Contact us today at market@tviewdisplay.com.
