55inch 3d spatial signage display

Screen weight :15kgs
Operation system: Android
Optional: 10 points touch screen
Standard bracket is wall mounted bracket
Standard package is wooden case with carton box
Available package is flight case
Could add your brand logo do promotion.

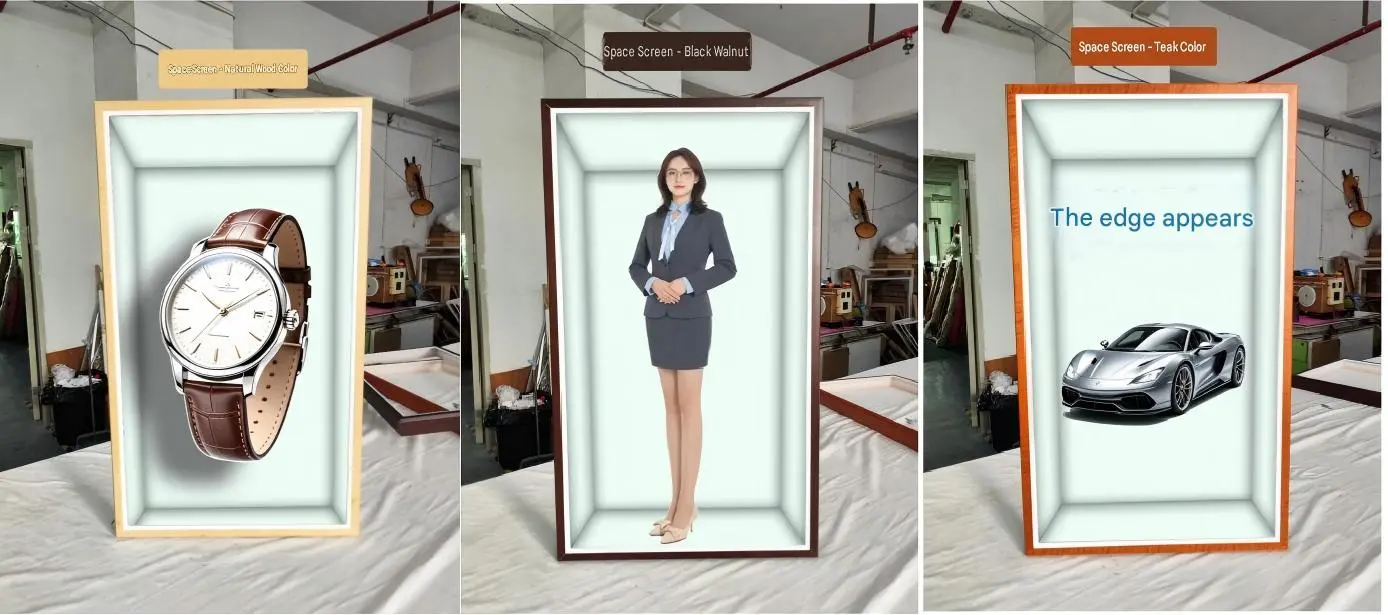

Available in multiple colors:Black / White / Natural Wood / Black Walnut / Teak
Send Inquiry Download
  • Product Description

The 3D Spatial  Display

Is not an ordinary LCD screen; it is a virtual, glasses-free 3D advertising display designed primarily for commercial environments.
Leveraging display technology innovation to deliver an immersive experience, it bridges the real and virtual worlds, allowing you to enjoy realistic 3D visuals in commercial spaces without the need for any auxiliary equipment. The display precisely projects distinct images to the left and right eyes, utilizing binocular parallax to enable the brain to naturally perceive depth. To achieve optimal results, it employs a "2D subject, 3D background" rendering approach: the foreground subject is rendered with crisp 2D resolution, while 3D depth effects create an immersive sense of space. This effectively resolves common issues associated with traditional glasses-free 3D, such as reduced image quality and narrow viewing angles. (Note: The 3D conversion refers to the screen's spatial depth effect; standard videos cannot be directly converted into 3D content.)

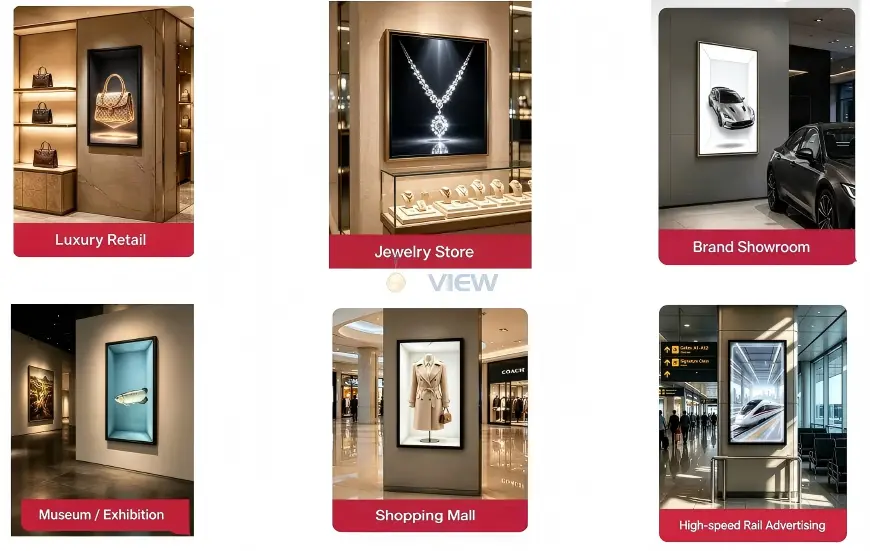

In terms of application scenarios, this "spatial screen" serves as a brilliant highlight for commercial visuals:
 Luxury Retail: Showcases jewelry, handbags, and more in 360-degree 3D, accentuating details and texture.
 Fashion Stores: Displays dynamic virtual models showcasing outfits, boosting interactivity and extending customer dwell time.
 Museums/Exhibition Halls: Allows artifacts or exhibits to appear as if "floating," offering a novel, interactive viewing experience.
 Public Spaces: Presents high-impact brand advertisements and information in venues such as shopping malls and airports.
 Transitioning from 2D to 3D, the spatial frame screen redefines the concept of "display." It acts as a window that dissolves the boundary between reality and the virtual world,
delivering a revolutionary visual experience that instantly resonates with the audience, bringing brand stories and product allure to life.

Size 21.5"/32"/55"/86"
Technology of display Supports lossless gamma anti-glare display technology, delivering canvas-like, true-to-life visual quality;
(Optional)
anti-glareOptimizing HAZE parameters through atomization technology transforms specular reflection into paper-like diffuse reflection, reducing eye strain for the user.
Resolution

1920*1080 2K/2840*2160 4K

Haze

Standard 5% (optional 25%)

Aspect ratio

9:16

Display size

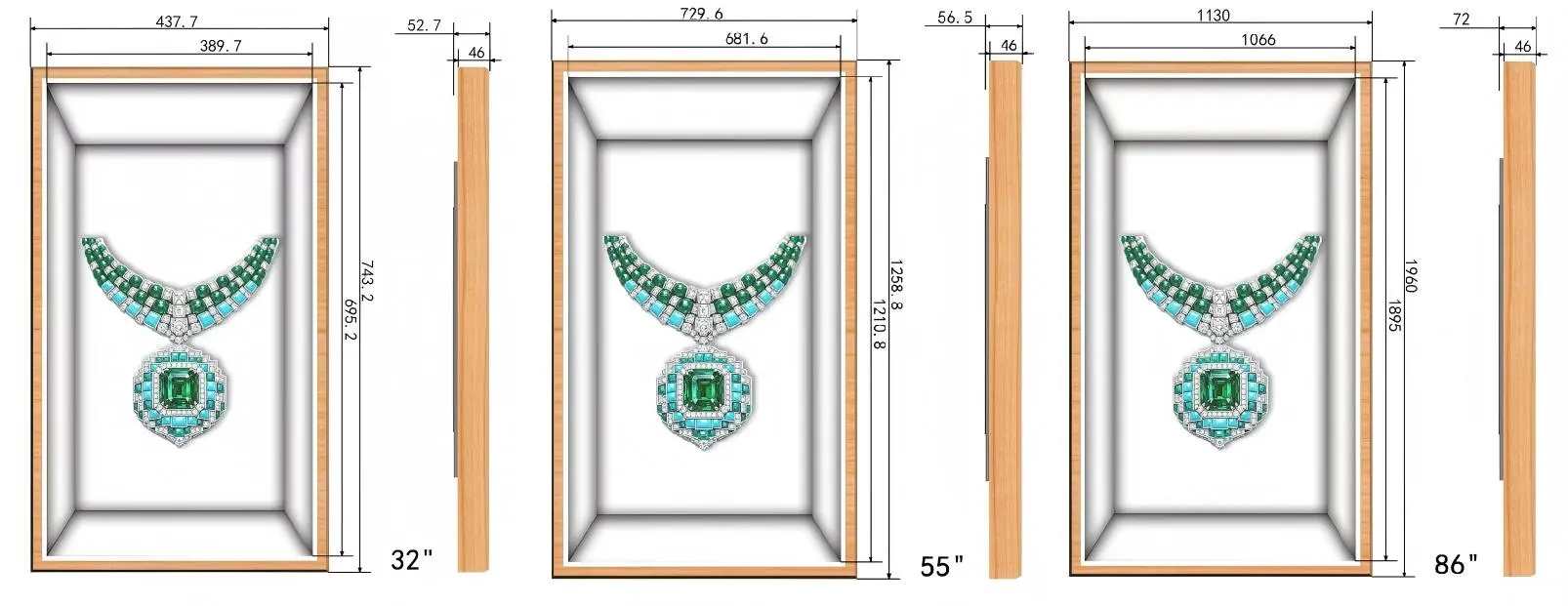

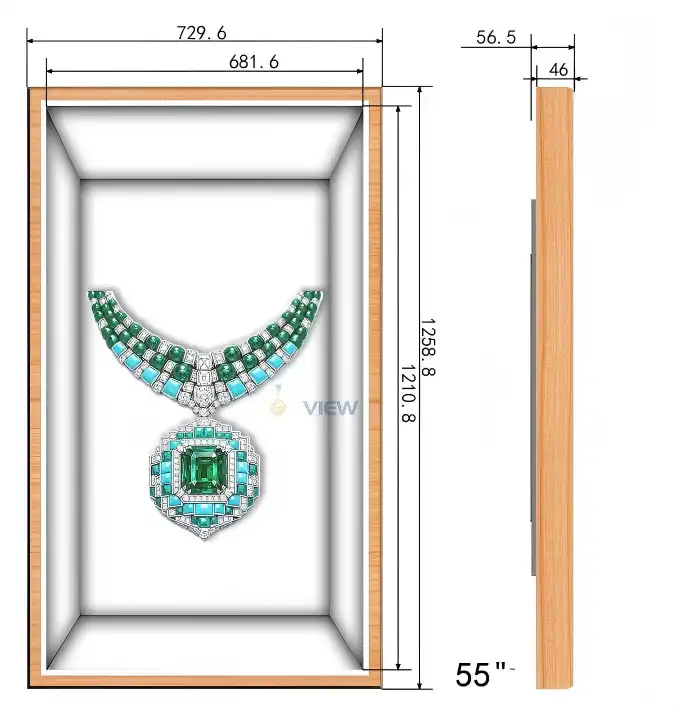

698.4×392.85 mm(32")/1210.8×681.6mm(55")/1895× 1066mm(86")

Contrast

1200:1

Response time

8ms

Pixel pitch (W×H)

0.4935mm × 0.4935mm

Viewing angle

178°

3D Depth-of-Field View60 degrees
Depth of Field Space

500mm

brightness≥350 cd/m² (optional brightness increase to 1000 cd/m²)
Backlight typeLED
Color gamut

72% NTSC / 100% sRGB

Operating frequency

60Hz

Pixel arrangement

Pixels RGB Island

System ConfigurationStandard display board solution with HDMI input (Android/PC optional).
Installation Method

Wall-mounted (floor-standing optional)

Input voltage

AC110-220V

Multi-colors



3D spatial display



Multi-sizes

3D spatial signage



Suitable for multiple use cases



spatial display
