120L solar compacting trash can

120L Solar Compacting Trash Can - Smart City Waste Management Solution

Shenzhen Topview Display presents the 120L solar compacting trash can (Model B2006B), an progressed squander administration arrangement built for savvy cities and high-traffic open spaces. This cleverly compactor junk canister highlights an 80W monocrystalline silicon sun based board producing roughly 320Wh every day, combined with a 12V/38Ah lead-acid gel battery guaranteeing ≥3 days of operation amid cloudy conditions.

The electromechanical compression framework conveys a greatest 500N compression drive, decreasing free family squander volume to 1/4 of its unique measure. With a 60W DC brushless engine driving a accuracy T-type ball screw, each compression cycle completes in 25-35 seconds at ≤55dB(A) commotion level. The 120-liter galvanized steel inward container, combined with 4× compression capacity, amplifies collection interims by up to 80%, drastically lessening operational costs for regions and office managers.

Built with IP54/IP67 security appraisals and working in temperatures from -20°C to +55°C, this sun based waste compactor withstands unforgiving open air situations whereas keeping up enterprise-grade reliability.

Technical Specifications

Advanced Compression Technology

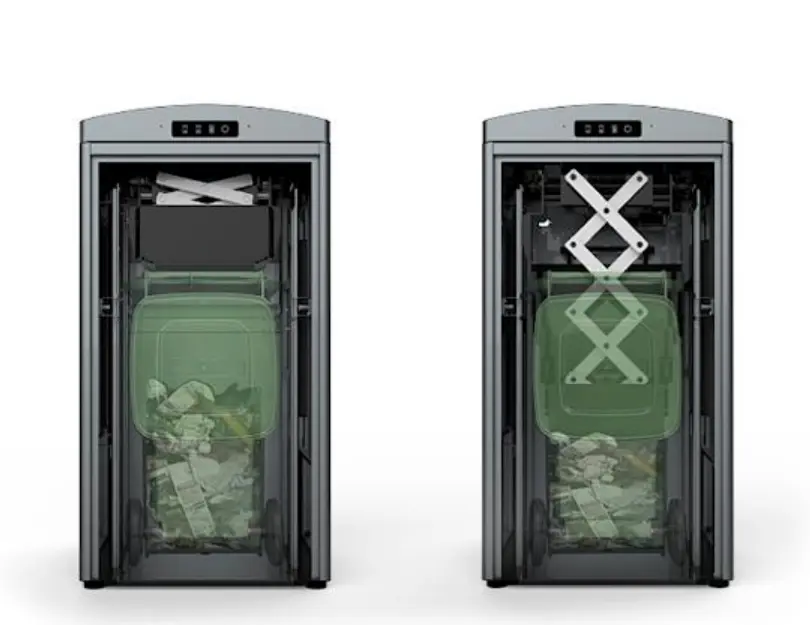

Your squander administration effectiveness changes with our motor-driven screw mechanical compression framework. The 60W brushless engine conveys 8N·m torque through a exactness T-type ball screw, making reliable 500N compression constrain over the weight plate.

Each compression cycle moves through a 350mm stroke at 15mm/s descending speed. The framework returns at 20mm/s, completing the full cycle in beneath 35 seconds. This exactness building guarantees uniform squander compaction without jamming.

The infrared sensor naturally triggers compression when squander comes to 100% capacity. After four successive compressions, the framework enters defensive shutdown, anticipating inward barrel over-burden. This cleverly plan expands hardware life expectancy whereas keeping up ideal performance.

Overload current discovery and slow down time checking give dual-layer security security. Restrain switches avoid mechanical over-travel, guaranteeing administrator security and gear life span all through day by day operations.

Solar Power Independence

Your 120L solar compacting trash can works totally off-grid with our high-efficiency vitality framework. The 80W monocrystalline silicon board accomplishes ≥18% sun based charging effectiveness, bolstering control through a built-in MPPT controller working at ≥97% efficiency.

The MPPT greatest control point following optimizes vitality collect all through shifting daylight conditions. Cheat assurance enacts at 14.4V limit, whereas over-discharge security locks in at 10.8V, protecting battery health.

During delayed cloudy periods, the framework naturally switches to AC220V/50Hz reinforcement control (≤80W input). The 12V/38Ah battery keeps up full usefulness for three sequential days without daylight, guaranteeing continuous operation.

Nighttime standby expends only ≤3W, moderating vitality whereas keeping up sensor availability. This brilliantly control administration kills repeating power costs and empowers sending in areas missing electrical infrastructure.

Smart Sensing & User Interaction

Modern comfort meets cleanliness in our cleverly detecting framework. The PIR infrared pyroelectric sensor recognizes human nearness inside 0.5-2m run over a 120° point, actuating the motorized container cover.

The cover opens 85°±5° naturally, killing touch contact and moving forward sanitation. After squander transfer, the cover closes consistently, containing odors and avoiding bug access.

Top-mounted 3W Driven light strips (4000K color temperature) light up naturally at night, directing clients securely. Blue intelligent side strips improve perceivability from all points amid low-light conditions.

Optional photoelectric smoke sensors (0.5-3%obs/m affectability) trigger ≥85dB alerts amid fire dangers. The 8W UV cleansing framework (253.7nm wavelength) enacts after each compression, neutralizing microscopic organisms and controlling odors naturally.

The advanced show board appears real-time battery levels, compression cycle tallies, and demonstrative blame codes. Saved RS485 interface underpins 4G/NB-IoT extension, empowering inaccessible armada administration integration for large-scale deployments.

Durable Construction for Harsh Environments

Your venture withstands a long time of open air presentation through military-grade development benchmarks. The 1.5mm galvanized steel body highlights outdoor-grade coal gray powder coating, standing up to UV corruption and corrosion.

The 304# stainless steel cigarette butt collector mounts helpfully on the side, isolating smoking squander from common deny. All galvanized steel components experience anti-rust treatment reasonable for coastal and mechanical environments.

IP54-rated fundamental body assurance shields inner components from clean and water sprinkling. The electrical compartment accomplishes IP67 waterproof rating, securing delicate gadgets from submersion amid extraordinary weather.

Operating mugginess resistance comes to ≤95%RH non-condensing conditions. Ground-embedded development jolts secure the 95kg unit against vandalism and extraordinary wind conditions, guaranteeing soundness in high-traffic zones.

This strong 120L solar compacting trash can keeps up execution over temperature extremes from -20°C to +55°C, serving ski resorts to forsake communities without degradation.

Cost Reduction & Environmental Impact

Transform your squander collection financial matters with data-driven effectiveness picks up. By compacting squander to 1/4 unique volume, you expand collection interims from every day to once each 4-5 days, lessening fuel utilization by up to 80%.

Fewer collection trips cruel lower labor costs, diminished armada support, and critical CO2 emanation decreases. A single sun oriented junk compactor dispenses with around 2.5 tons of CO2 yearly compared to conventional collection schedules.

The independent sun powered operation cuts power costs to zero whereas illustrating your commitment to renewable vitality. Metropolitan clients report 60-75% operational investment funds inside the to begin with year of deployment.

High-traffic areas like parks, campuses, commercial roads, and traveler attractions advantage most significantly. Ranges creating fast squander volumes keep up cleaner aesthetics without expanding staff workload or collection frequency.

Your community maintains a strategic distance from unattractive flood circumstances, bug invasions, and open wellbeing complaints. The obvious innovation signals dynamic natural stewardship, improving your organization's maintainability profile.

Frequently Asked Questions

Q: How much waste can the product hold after compression?

A: The 4:1 compression ratio allows the 120L bin to hold approximately 480L of loose household waste before requiring collection. This effectively quadruples capacity compared to traditional bins of the same physical size.

Q: What happens during extended rainy periods without sunlight?

A: The 12V/38Ah battery provides ≥3 days of continuous operation when fully charged. After battery depletion, the system automatically switches to AC220V backup power (if available), ensuring uninterrupted service. The MPPT controller recharges batteries immediately when sunlight returns.

Q: Is the compression system safe for users and maintenance staff?

A: Yes. Multiple safety features include overload current detection, stall protection, limit switches, and automatic shutdown after four consecutive compressions. The infrared sensor prevents compression activation when objects are detected near the opening. All moving parts operate within enclosed compartments.

Q: Can the bin handle wet waste and liquids?

A: The galvanized steel construction resists corrosion from moisture. However, for optimal compression performance and hygiene, we recommend using the bin primarily for dry or semi-dry waste. Excessive liquids may reduce compression efficiency and require more frequent cleaning.

Q: How do I know when the bin needs emptying?

A: The digital display panel shows compression cycle counts. After four consecutive compressions, the red full-load indicator illuminates, and the system enters protective shutdown. Optional 4G/NB-IoT connectivity sends real-time alerts to your fleet management system for route optimization.

Q: What certifications does Topview's solar compacting trash can hold?

A: All our products comply with international standards including CE, RoHS, FCC, and ISO certifications, ensuring safe deployment across global markets.
